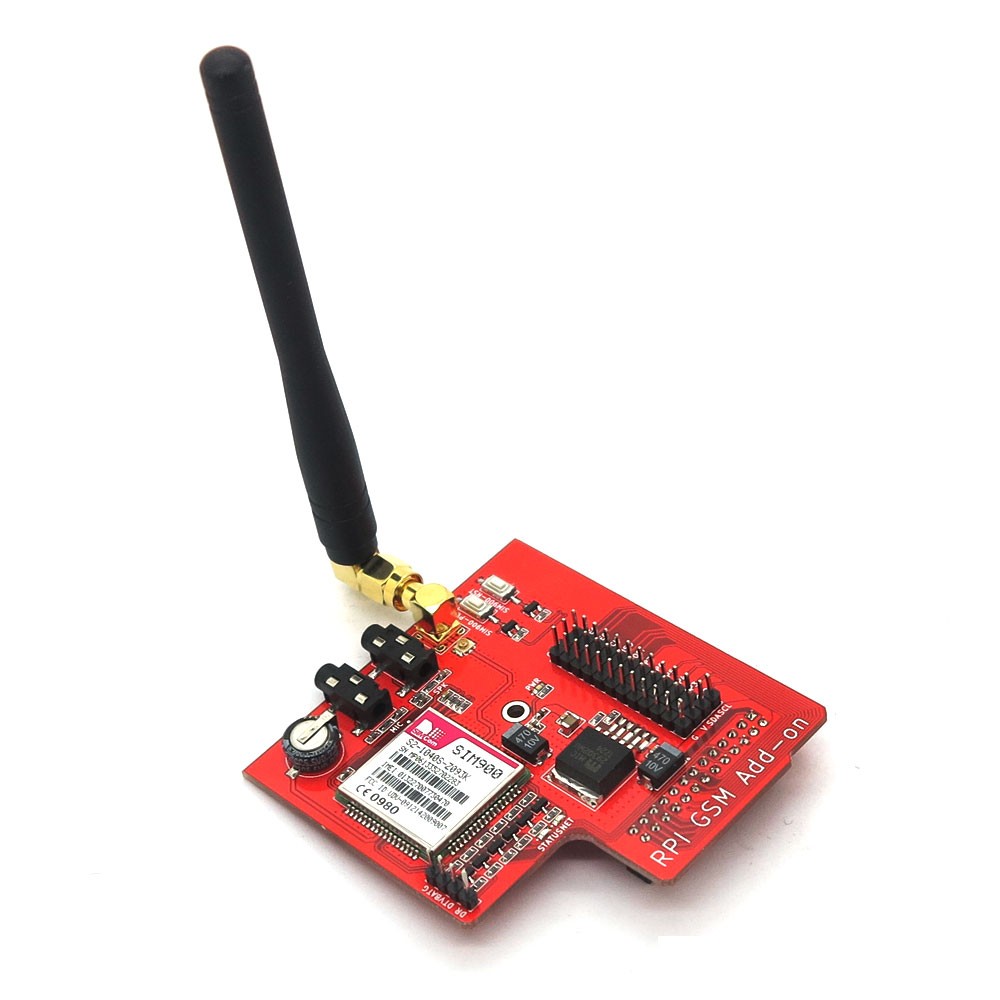

Placa Módulo SIM900 GSM/GPRS Para Raspberry Pi

Overview

Raspberry PI GSM Add-on is customized for Raspberry Pi interface based on SIM900 quad-band GSM/GPRS module. AT commands can be sent via the serial port on Raspberry Pi, thus functions such as dialing and answering calls, sending and receiving messages and surfing on line can be realized. Moreover, the module supports powering-on and resetting via software.
Features

    Quad-Band 850/ 900/ 1800/ 1900 MHz
    GPRS multi-slot class 10/8GPRS mobile station class B
    Compliant to GSM phase 2/2+Class 4 (2 W @850/ 900 MHz)
    Class 1 (1 W @ 1800/1900MHz)
    Control via AT commands (GSM 07.07 ,07.05 and SIMCOM enhanced AT Commands)
    Low power consumption: 1.5mA(sleep mode)
    Operation temperature: -40°C to +85 °C

Module Type     No
Weight     50.00g
Model     IM131224002
Board Size     73.8mm X 70mm X 1.6mm
Version     V1.0
Operation Level     Digital 3.3V
Power Supply     External 5V
